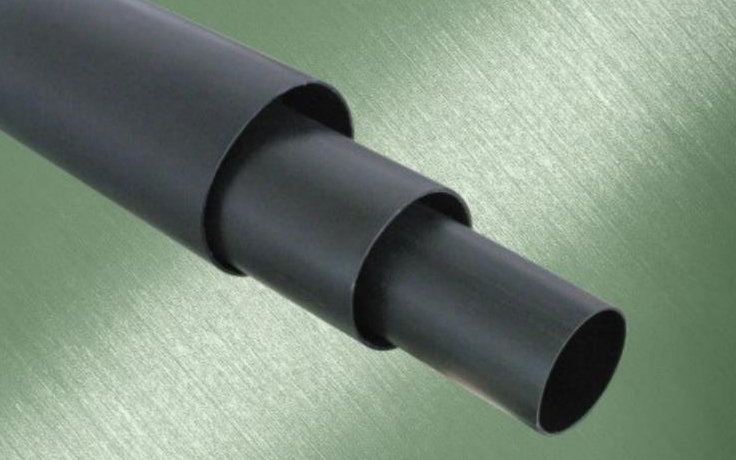

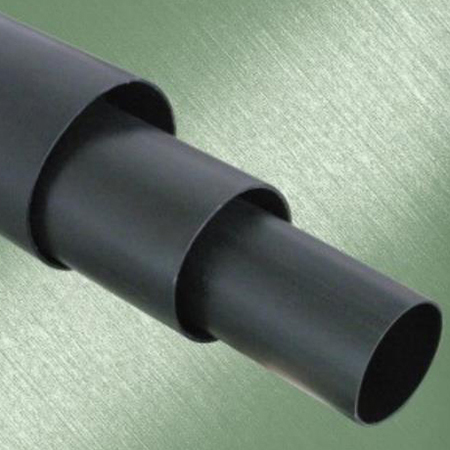

Medium-Wall Heat Shrink Tubing (Dual Wall)

Semi-Rigid Electronic Insulation Heat Shrink Tubing for Communications

Request a Quote

Applications

The polyolefin material used in our tubing offers superior electronic insulation and mechanical protection. With its high shrinkage ratios, this heat shrink tubing is ideal for connecting a wide range of wire bundles or components.
Its thick wall design is especially suitable for electronic insulation and mechanical protection of medium and high-voltage power cables. The inner layer's hot-melt adhesive provides waterproof sealing for connected components.

Features

High shrinkage ratio, accommodating larger diameters
Black outer layer with high UV resistance
Semi-rigid polyolefin material for superior electronic insulation and mechanical protection
Lowest full shrink temperature: 135°C

Technical Data

Properties	Test Method	Performance
Continuous operating temperature (℃)	IEC 216	-55~110
Tensile strength (MPa)	ASTM D2671	≥14
Ultimate elongation (%)	ASTM D2671	≥400
Heat aging	150℃, 168h	-
Tensile strength after aging (MPa)	ASTM D2671	≥12
Ultimate elongation after aging (%)	ASTM D2671	≥300
Volume resistivity (Ω·cm)	IEC 93	≥1.0*10¹⁴Ω·cm
Dielectric strength (kV/mm)	IEC 243	≥20
Longitudinal change (%)	UL224	0~10
Concentricity (%)	ASTM D2671	≥65
Cracking resistance	ASTMD1693(50℃)	No cracking
Water absorption (%)	ISO 62	0.2
Hot melt adhesive
Softening point (℃)	ASTMD E28	85
Peel strength (PE)	DIN 30672	≥4
Copper stability (%)	ASTMD2671	No corrosion
Resistance to fungus and decay	ISO 846	Pass
