PVC Tubing

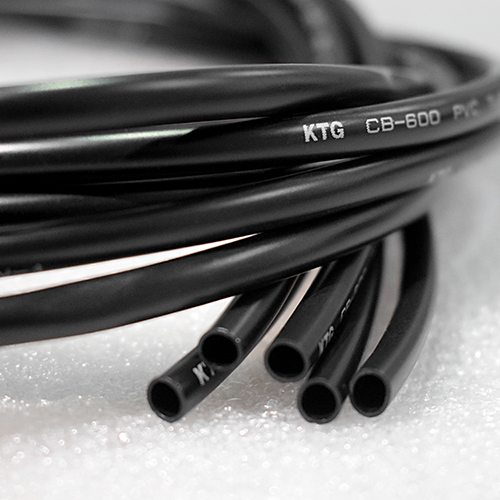

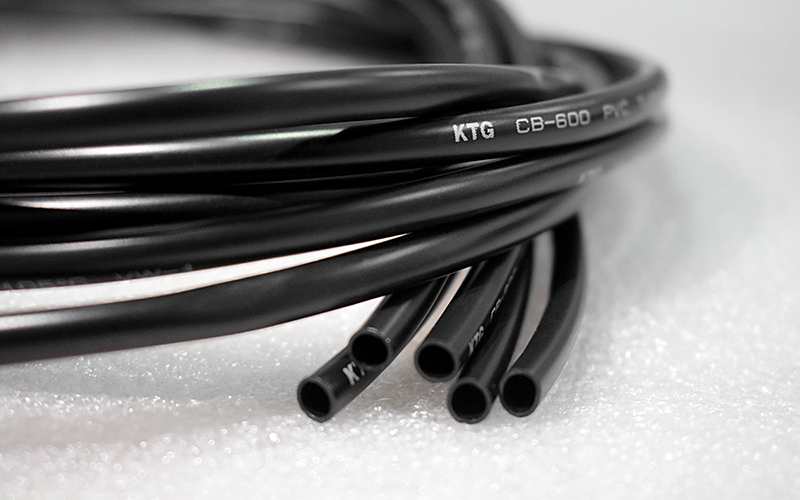

CB-300/600 (PVC)

PVC Tubing

Non-Shrink Tubing for Electronic Applications
  • PVC (Polyvinyl Chloride)
  • Flexible and elastic
  • Ideal electronic and physical properties, corrosion resistance
  • Good flame-retardant performance, compliant with UL224 VW-1 flame retardant rating and F-MARK certification
Request a Quote
Applications
  • Our tubing made from PVC material, finds wide application in industries such as electronic components, home appliances, automotive, machinery, toys, and sports equipment.
Features
  • Flexible and elastic
  • Ideal electronic and physical properties, corrosion resistance
  • Good flame-retardant performance, compliant with UL224 VW-1 flame retardant rating and F-MARK certification
Technical Data
Properties Test Method Performance Typical Value
Operating temperature - 105℃ 105℃
Longitudinal change ASTMD2671 -5%~5% -3%
Tensile strength ASTMD638 ≥10.4MPa 14.0Mpa
Ultimate elongation ASTMD638 ≥200% 400%
Heat aging (136℃/168h) - - -
Tensile strength after aging ASTMD638 ≥7.3MPa 9.3Mpa
Ultimate elongation after aging ASTMD638 ≥100% 200%
Operating voltage - 300V/600V 300V/600V
Volume resistivity ASTMD2671 ≥1.0×1010 Ω·cm 3.6×1010 Ω·cm
Dielectric strength (2500V/60s) UL224 No breakage No breakage
Heat shock (180℃±1℃/4h) UL224 No dripping, no flowing, no cracking Qualified
Cold bend (-30℃±1h) UL224 No cracking Qualified
Copper corrosion (136℃/168h) UL224 No corrosion No corrosion
Dimensions
Size Inside Diameter (mm) Wall Thickness (mm)
300V 600V
5/8 15.9 0.70±0.15 0.70±0.15
9/16 14.3 0.70±0.15 0.70±0.15
1/2 12.7 0.57±0.15 0.57±0.15
7/16 11.1 0.57±0.15 0.57±0.15
3/8 9.53 0.57±0.15 0.57±0.15
5/16 7.92 0.57±0.15 0.57±0.15
0# 8.38 0.45±0.15 0.57±0.15
1# 7.47 0.45±0.15 0.57±0.15
2# 6.68 0.45±0.15 0.57±0.15
3# 5.94 0.45±0.15 0.57±0.15
4# 5.28 0.45±0.15 0.57±0.15
5# 4.72 0.45±0.15 0.57±0.15
6# 4.22 0.45±0.15 0.57±0.15
7# 3.87 0.45±0.15 0.57±0.15
8# 3.38 0.45±0.15 0.57±0.15
9# 3.00 0.45±0.15 0.57±0.15
10# 2.69 0.35±0.10 0.57±0.10
11# 2.41 0.35±0.10 0.57±0.10
12# 2.16 0.35±0.10 0.57±0.10
13# 1.93 0.35±0.10 0.57±0.10
14# 1.68 0.35±0.10 0.57±0.10
15# 1.50 0.35±0.10 0.57±0.10
16# 1.34 0.35±0.10 0.57±0.10
17# 1.19 0.35±0.10 0.57±0.10
18# 1.07 0.35±0.10 0.45±0.10
19# 0.96 0.35±0.10 0.45±0.10
20# 0.86 0.35±0.10 0.45±0.10
21# 0.79 0.35±0.10 0.45±0.10
