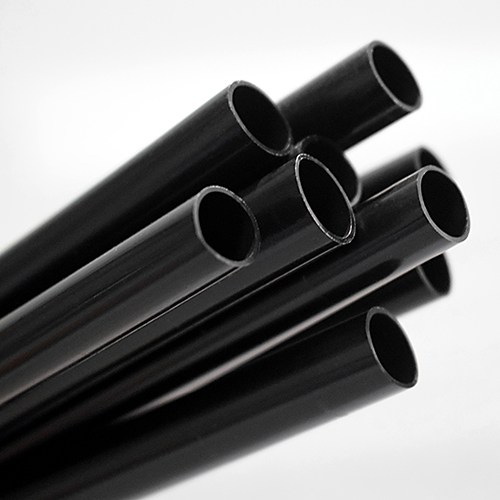

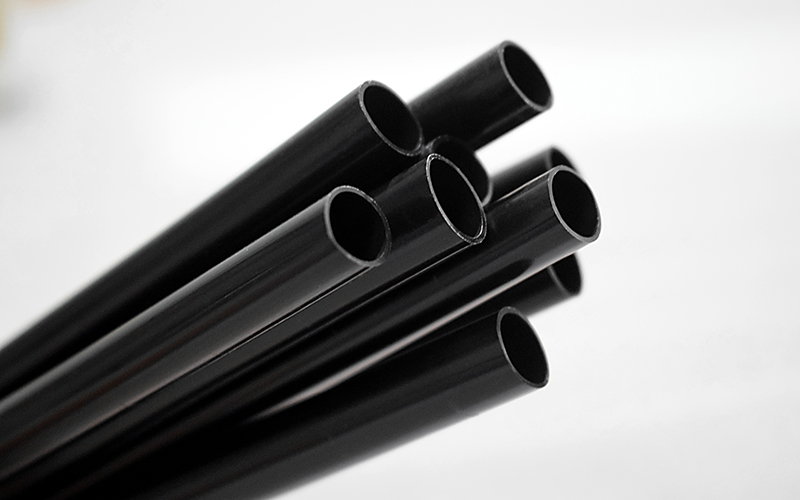

High Temperature TPU Tubing (up to 150℃)

CYG-TPU-IP150

High Temperature TPU Tubing (up to 150℃)

Non-Shrink Tubing for Automotive Wiring Harness Protection
  • Thermoplastic polyurethane
  • Temperature rating: -40°C to 150°C
  • Ideal abrasion resistance
  • Superior solvent resistance
  • Environmental compliance with RoHS requirements
Request a Quote
Applications
  • Our tubing finds extensive application in the automotive electronics industry for wire harness protection.
  • Due to its outstanding characteristics, it is particularly suitable for use in harsh environments and where special protection is required.
Features
  • Temperature rating: -40°C to 150°C
  • Ideal abrasion resistance
  • Superior solvent resistance
  • Environmental compliance with RoHS requirements
  • Meets ES-2U5A-1A263-AA standard
Technical Data
Properties Test Method Performance
Hardness DIN 53505 85± (2 Shore A)
Density DIN 53439 (1.18±0.05)g/cm³
Tensile strength DIN 53504 ≥30MPa
Ultimate elongation DIN 53504 ≥400%
Abrasion resistance ASTMD4060-19 < 1%
Hydrolysis resistance Storage in water for 21 days at 80°C -
Solvent resistance ES -2U5A -1A263-AA No cracking
Short-term aging 175℃, 240H No cracking
Long-term aging 150℃, 3000H No cracking
Low temperature resistance -40℃, 22H No cracking
Flammability FMVSS 302 < 100mm/min
Dimensions
Size Inside Diameter (mm) Wall Thickness (mm)
Ø1.5 1.6+0.30 0.3±0.10
Ø2.0 2.1+0.30 0.3±0.10
Ø2.5 2.6+0.30 0.3±0.10
Ø3.0 3.1+0.30 0.3±0.10
Ø3.5 3.6+0.30 0.3±0.10
Ø4.0 4.1+0.30 0.4±0.10
Ø4.5 4.6+0.30 0.4±0.10
Ø5.0 5.1+0.30 0.5±0.15
Ø5.5 5.6+0.30 0.5±0.15
Ø6.0 6.1+0.30 0.5±0.15
Ø6.5 6.6+0.30 0.5±0.15
Ø7.0 7.1+0.30 0.6±0.15
Ø7.5 7.6+0.30 0.6±0.15
Ø8.0 8.1+0.30 0.6±0.15
Ø8.5 8.6+0.30 0.6±0.15
Ø9.0 9.1+0.30 0.6±0.15
Ø9.5 9.6+0.40 0.6±0.15
Ø10.0 10.1+0.40 0.6±0.15
Ø11.0 11.1+0.40 0.6±0.15
Ø11.5 11.6+0.40 0.6±0.15
Ø12.0 12.1+0.40 0.6±0.15
Ø12.5 12.6+0.40 0.6±0.15
Ø13.0 13.1+0.50 0.6±0.15
Ø14.0 14.1+0.50 0.6±0.15
Ø15.0 15.1+0.50 0.6±0.15
Ø16.0 16.1+0.50 0.6±0.15
Ø17.0 17.1+0.60 0.6±0.15
Ø18.0 18.1+0.60 0.6±0.15
Ø19.0 19.1+0.60 0.6±0.15
Ø20.0 20.1+0.60 0.8±0.15
Ø21.0 21.1+0.60 0.8±0.15
Ø22.0 22.1+0.70 0.8±0.15
Ø23.0 23.1+0.70 0.8±0.15
Ø24.0 24.1+0.70 0.8±0.15
Ø25.0 25.1+0.70 0.8±0.15
Ø26.0 26.1+0.70 0.8±0.15
Ø27.0 27.1+0.70 1.0±0.20
Ø28.0 28.1+0.80 1.0±0.20
Ø29.0 29.1+0.80 1.0±0.20
Ø30.0 30.1+0.80 1.0±0.20
