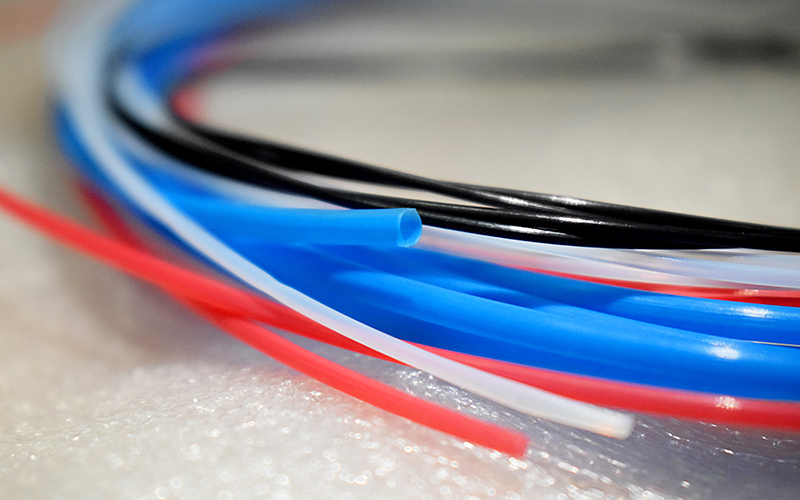

PTFE Gear Cable Liner Tube

CYG-AMT

PTFE Gear Cable Liner Tube

  • Typical working temperature: -50°C to 200°C
  • Low friction coefficient, high abrasion resistance, long service life
  • Ideal mechanical properties and chemical resistance
  • Long lengths (e.g., Ø3.7×4.5 with continuous length up to 1500 M)
  • Traceable tubing (proprietary equipment)
Request a Quote
Applications
  • Our PTFE gear cable liner tube is a wear-resistant fluoroplastic liner tube manufactured using high-quality PTFE dispersion resin.

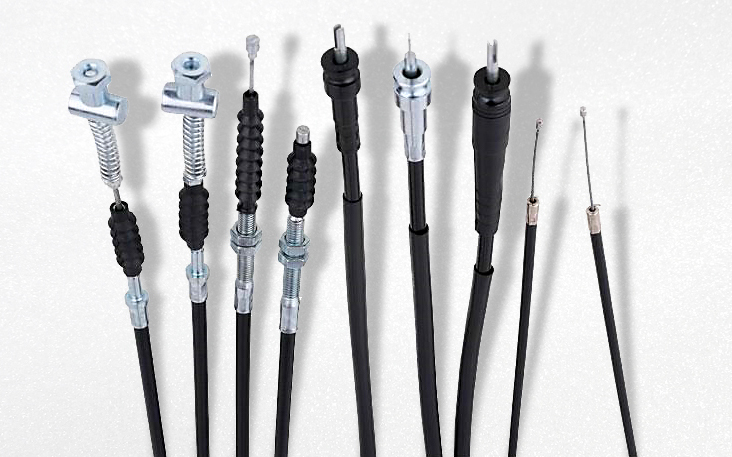

  • It exhibits a low friction coefficient (approximately 0.02) and high abrasion resistance. Our tube is primarily used in various automotive applications, including car, bus, truck, forklift, mining engineering vehicles, yachts, and other operational cable assemblies.
Technical Data
Properties Test Method Performance
CYG-AMT(G) CYG-AMT(M01) CYG-AMT(M02)
Base material - PTFE PTFE PTFE
Filler - None Abrasion resistant filler High temperature abrasion resistant resin
Color - Natural Brown Yellow
Specific gravity ASTMD792 2.13g/cm³ ~2.20g/cm³ 2.0g/cm³ ~2.16g/cm³ 2.0g/cm³~2.16g/cm³
Melting point ASTMD3418 327℃±10℃ PTFE: 327℃±10℃
Filler: 280℃±10℃ 		PTFE: 327℃±10℃
Filler degrade＞450℃
Continuous operating temperature - 200℃ 200℃ 200℃
Tensile strength ASTMD638 ≥20.7MPa ≥27.6MPa ≥25.0MPa
Ultimate elongation ASTMD638 ≥200% ≥150% ≥150%
Wear resistance (self-developed test device) Load: 80N R=400mm - ≥500000 cycles No crack, no breakdown ≥1000000 cycles No crack, no breakdown
Chemical resistance - Excellent Excellent Excellent
Flammability UL224 Pass Pass Pass
PTFE Gear Cable Liner Tube

Engineering Plastic Gear Cable Liner Tube

  • Inner liner: PTFE/modified PTFE
  • Outer layer: engineering plastics such as PA, PBT, or
  • Low friction coefficient, high abrasion resistance, and long service life
  • Competitive pricing with low noise and lightweight
Applications

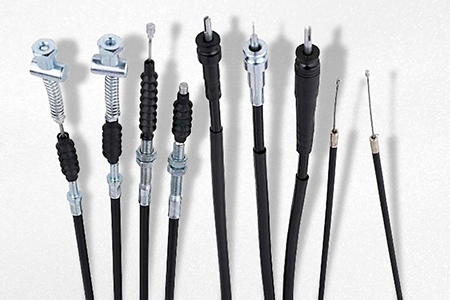

  • Our engineering plastic gear cable liner tube is an ideal choice for automotive cable assemblies. With its PTFE inner liner and engineering plastic outer layer, it meets the demand for low friction and high abrasion resistance while providing cost advantages. It finds wide applications in cars, buses, trucks, forklifts, mining vehicles, yachts, and other operational cable assemblies.
Features
  • Low friction coefficient, high abrasion resistance, and long service life
  • Competitive pricing with low noise and lightweight
  • Long lengths (e.g., continuous length up to 1500 M for Ø3.7×4.5)
  • Traceable tubing (proprietary equipment)
  • Material options and customizable specifications
