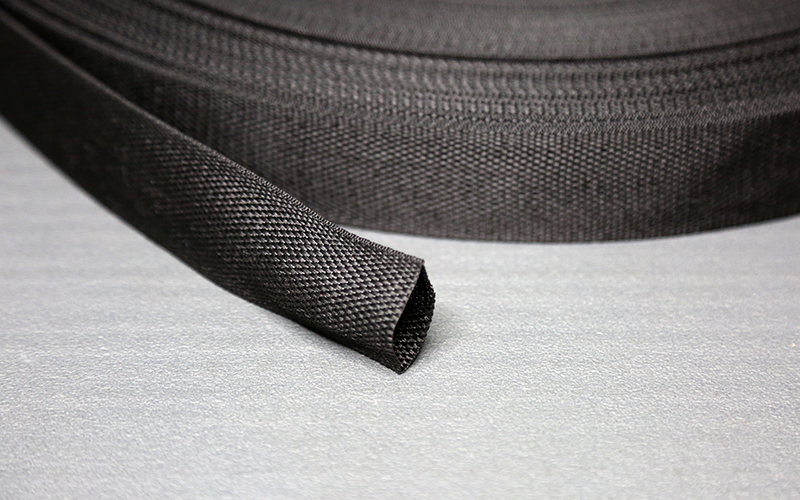

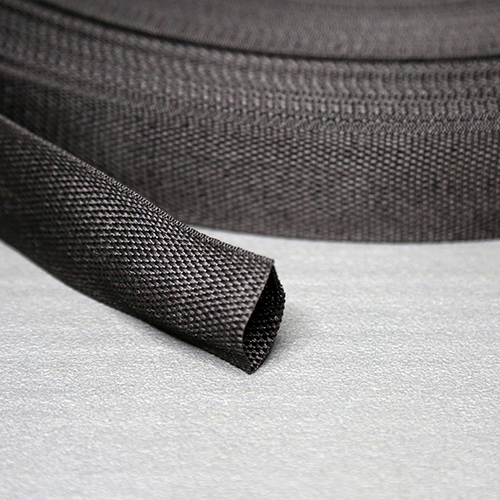

Heat Shrinkable Braided Sleeving

CYG-RSF

Heat Shrinkable Braided Sleeving

  • Lengthwise: High-strength, wear-resistant fiber
  • Crosswise: Cross-linked modified polyolefin resin
  • Shrink ratio: 2:1
  • Operating temperature: -40℃～125℃
  • Shrink temperature: 110℃
  • Maximum storage temperature: 60℃
Request a Quote
Applications
  • Our heat shrinkable braided sleeving is extensively used for protecting automotive tubing, and other applications requiring abrasion resistance, shock absorption, and noise reduction.
Features
  • Shrink ratio: 2:1
  • Operating temperature: -40℃～125℃
  • Shrink temperature: 110℃
  • Maximum storage temperature: 60℃
  • High flexibility, easy installation, and high abrasion resistance
  • Standard color: black
  • UL224 certified, Certification Number: E329207
Technical Data
Properties Test Method Performance
Abrasion resistance 23℃, 200g load, 144000 cycles No damage to underlying hose
Low temperature flexibility -40℃, 4h No cracking
Cold shock 200g weight from 100mm at -40℃ No cracking
Heat shock Between -40°C and 125°C, 100 cycles No damage to underlying hose under 23℃
Fluid resistance 24h immersion at 23℃ Antifreeze (50% ethylene glycol), engine oil, inorganic hydraulic fluid, detergent, brake fluid, unleaded gasoline, diesel fuel, battery acid No damage to underlying hose under 23℃
Dimensions

Shrink Ratio: 2:1

Size Minimum Inside Diameter As Supplied (mm) Maximum Inside Diameter After Recovery (mm)
CYG-RSF-12/6-B ≥12 ≤6
CYG-RSF-20/10-B ≥20 ≤10
CYG-RSF-30/15-B ≥30 ≤15
CYG-RSF-40/20-B ≥40 ≤20
CYG-RSF-50/25-B ≥50 ≤25
CYG-RSF-60/30-B ≥60 ≤30
CYG-RSF-70/35-B ≥70 ≤35
CYG-RSF-80/40-B ≥80 ≤40
CYG-RSF-120/60-B ≥120 ≤60
