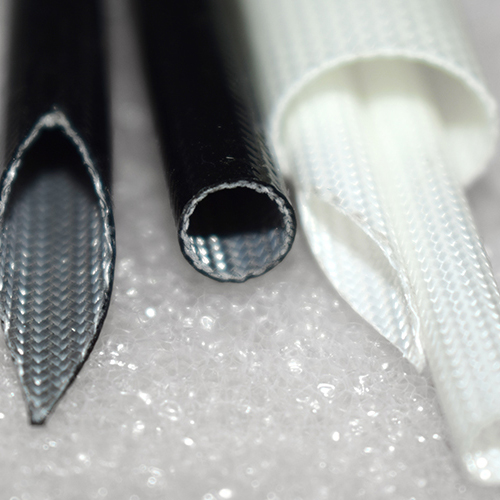

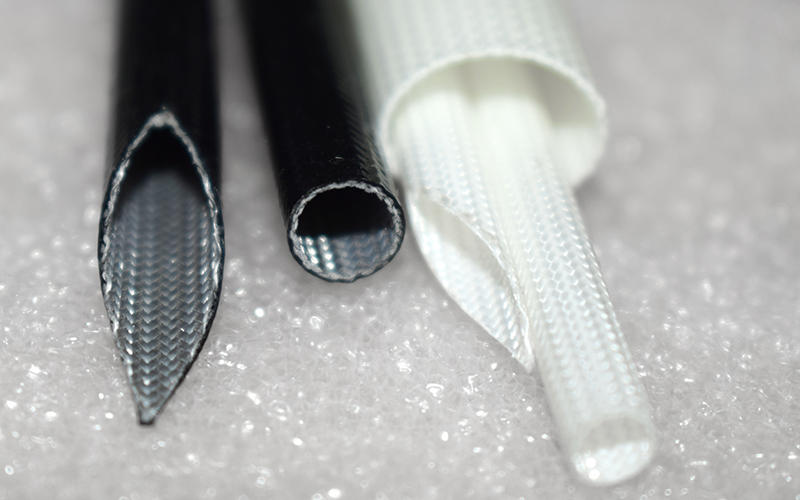

Silicone Coated Fiberglass Sleeving

Request a Quote

Non-Shrink Tubing for Electronic Applications

Applications

They are widely used in insulation protection for H&N class motors, household appliances, heating equipment, special lamps, internal wiring of televisions and electronic instruments, and more.

Features

Silicone coated fiberglass sleeving is made by weaving alkali-free glass fiber yarn into a tube and then coating it with silicone resin through high-temperature treatment.
Silicone rubber coated fiberglass sleeving is made by weaving alkali-free glass fiber yarn into a tube and then coating it with silicone rubber through high-temperature treatment.
Both products exhibit superior dielectric properties, self-extinguishing properties, and flexibility.

Materials (CB-SGS)

Raw Materials		Purpose	Content
Glassfiber	SiO₂ +Al₂O +CaO₃	Insulation and temperature resistance	50%
Silicone	(SiO₂ )n	Insulation and voltage withstand	50%

Materials (CB-SRS)

Raw Materials		Purpose	Percentage
Glassfiber	SiO₂ +Al₂ O + CaO₃	Insulation and temperature resistance	50%
Silicone Oil	[(CH₃)₂SiO]n	Insulation and voltage withstand	50%

Technical Data

Properties	Performance
Continuous operating temperature	-10℃+200℃
Temperature resistance	200℃±2℃,168H≥1/2 original voltage value
Heat aging	260℃, 6 hours, no cracking
Cold bend	No cracking
Self-extinguishing time	10 seconds
Horizontal burning	≤30 seconds
Flammability	VW-1
Volume resistivity	10¹¹ Ω.CM
Hydrolytic stability	Not sticky, no distortion, no softening
