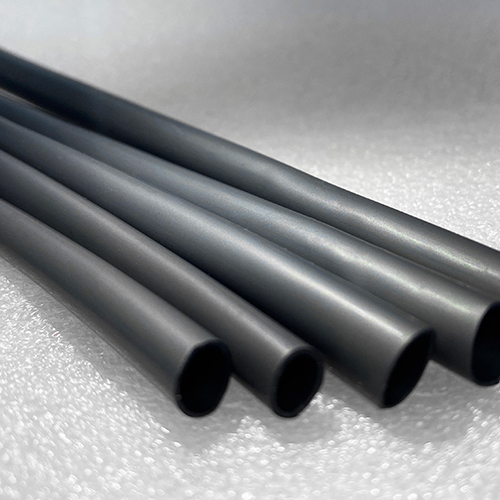

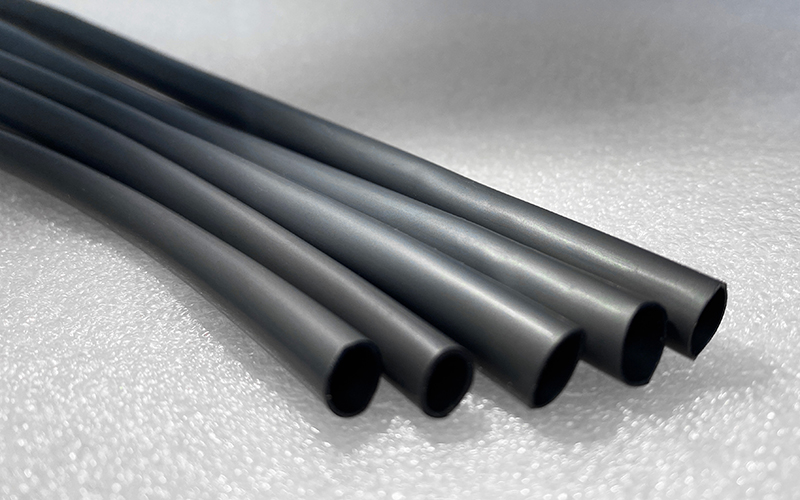

Heat-Shrinkable Silicone Rubber Tubing

CB-SRT

Applications

Our heat-shrinkable silicone rubber tubing is specifically designed to insulate, protect, and coat electronic components with special requirements. It is widely used in the electronic, lighting, and medical equipment industries. Its key advantage over other tubing is its ability to withstand temperatures up to 200°C.

Request a Quote Material

Material	Percentage
Methyl vinyl blended rubber RMe2 SiO (Me 2SiO) n (MeViSiO)MSiMeR (R stands for Me/Vi)	58%
Silicon Dioxide Powder (SiO2)	39%
Colorant	2%

Technical Data

Properties	Flame Retardant Type	Non-Flame Retardant Type
Tensile strength	4.0MPa	6.9MPa
Ultimate elongation	150%	200%
Tear strength	10KN/m	14KN/m
Volume resistivity	2×10¹² Ω·m (2×10 ¹⁴ Ω·cm )	2×10¹² Ω·m (2×10¹⁴ Ω·cm )
Dielectric strength	20kV/mm	20kV/mm
Dielectric constant (Ε)50HZ	3.2	3.2
Dielectric loss angle tangent 50HZ	0.001	0.001
Operating temperature	-50℃～200℃	-5℃～200℃
Shrink temperature	＞90℃	＞90℃
Flammability	VW-1	-

Dimensions

Size	As Supplied (mm)			After Recovery (mm)			Packaging
Size	Inside Diameter	Wall Thickness (Thin)	Wall Thickness (Thick)	Inside Diameter	Wall Thickness (Thin)	Wall Thickness (Thick)	Packaging
Ø0.8	≥0.8	0.5±0.15	0.8±0.15	0.5±0.1	0.7±0.15	1.2±0.2	200 m/pack
Ø1.0	≥1.0	0.5±0.15	0.8±0.15	0.6±0.1	0.7±0.15	1.2±0.2	200 m/pack
Ø1.5	≥1.5	0.5±0.15	0.8±0.15	0.9±0.2	0.7±0.15	1.2±0.2	200 m/pack
Ø 2.0	≥2.0	0.5±0.15	0.8±0.15	1.2±0.2	0.7±0.15	1.2±0.2	200 m/pack
Ø2.5	≥2.5	0.5±0.15	0.8±0.15	1.5±0.2	0.7±0.15	1.2±0.2	200 m/pack
Ø3.0	≥3.0	0.5±0.15	0.8±0.15	1.8±0.2	0.8±0.15	1.3±0.2	100 m/pack
Ø3.5	≥3.5	0.5±0.15	0.8±0.15	2.1±0.3	0.8±0.15	1.3±0.2	100 m/pack
Ø4.0	≥4.0	0.5±0.15	0.8±0.15	2.4±0.3	0.8±0.15	1.3±0.2	100 m/pack
Ø 4.5	≥4.5	0.5±0.15	0.8±0.15	2.7±0.3	0.8±0.15	1.3±0.2	100 m/pack
Ø5.0	≥5.0	0.5±0.15	0.8±0.15	3.0±0.3	0.8±0.15	1.3±0.2	100 m/pack
Ø5.5	≥5.5	0.5±0.15	0.8±0.15	3.3±0.3	0.8±0.15	1.3±0.2	100 m/pack
Ø6.0	≥6.0	0.5±0.15	0.8±0.15	3.6±0.3	0.8±0.15	1.3±0.2	100 m/pack
Ø6.5	≥6.5	0.5±0.15	0.8±0.15	3.9±0.3	0.8±0.15	1.3±0.2	100 m/pack
Ø7.0	≥7.0	0.5±0.15	0.8±0.15	4.2±0.3	0.8±0.15	1.3±0.2	100 m/pack
Ø7.5	≥7.5	0.5±0.15	0.8±0.15	4.5±0.3	0.8±0.15	1.3±0.2	100 m/pack
Ø8.0	≥8.0	0.6±0.15	0.8±0.2	4.7±0.4	1.0±0.2	1.3±0.2	100 m/pack
Ø 8.5	≥8.5	0.6±0.15	0.8±0.2	5.0±0.4	1.0±0.2	1.3±0.2	100 m/pack
Ø9.0	≥9.0	0.6±0.15	0.8±0.2	5.3±0.4	1.0±0.2	1.3±0.2	100 m/pack
Ø9.5	≥9.5	0.6±0.15	0.8±0.2	5.6±0.4	1.0±0.2	1.3±0.2	100 m/pack
Ø10	≥10.0	1.0±0.2	1.5±0.3	5.9±0.5	1.7±0.3	2.5±0.4	100 m/pack
Ø11	≥11.0	1.0±0.2	1.5±0.3	6.5±0.5	1.7±0.3	2.5±0.4	100 m/pack
Ø 12	≥12.0	1.0±0.2	1.5±0.3	7.1±0.5	1.7±0.3	2.5±0.4	100 m/pack
Ø13	≥13.0	1.0±0.2	1.5±0.3	7.7±0.5	1.7±0.3	2.5±0.4	50 m/pack
Ø14	≥14.0	1.0±0.2	1.5±0.3	8.3±0.5	1.7±0.3	2.5±0.4	50 m/pack
Ø15	≥15.0	1.0±0.2	1.5±0.3	8.9±0.5	1.7±0.3	2.5±0.4	50 m/pack
Ø16	≥16.0	1.0±0.2	1.5±0.3	9.5±0.5	1.7±0.3	2.5±0.4	50 m/pack
Ø17	≥17.0	1.0±0.2	1.5±0.3	10.0±0.5	1.7±0.3	2.5±0.4	50 m/pack
Ø18	≥18.0	1.0±0.2	1.5±0.3	10.6±0.5	1.7±0.3	2.5±0.4	50 m/pack
Ø19	≥19.0	1.0±0.2	1.5±0.3	11.2±0.5	1.7±0.3	2.5±0.4	50 m/pack
Ø20	≥20.0	1.0±0.2	1.5±0.3	11.8±1.0	1.7±0.3	2.5±0.4	50 m/pack
Ø21	≥21.0	1.0±0.2	1.5±0.3	12.4±1.0	1.7±0.3	2.5±0.4	50 m/pack
Ø22	≥22.0	1.0±0.2	1.5±0.3	13.0±1.0	1.7±0.3	2.5±0.4	50 m/pack
Ø23	≥23.0	1.0±0.2	1.5±0.3	13.6±1.0	1.7±0.3	2.5±0.4	50 m/pack
Ø24	≥24.0	1.0±0.2	1.5±0.3	14.2±1.0	1.7±0.3	2.5±0.4	50 m/pack
Ø25	≥25.0	1.1±0.3	1.5±0.3	14.7±1.0	2.0±0.3	2.5±0.4	50 m/pack
Ø26	≥26.0	1.1±0.3	1.5±0.3	15.3±1.5	2.0±0.3	2.5±0.4	1 m/pack
Ø27	≥27.0	1.1±0.3	1.5±0.3	15.9±1.5	2.0±0.3	2.5±0.4	1 m/pack
Ø28	≥28.0	1.1±0.3	1.5±0.3	16.5±1.5	2.0±0.3	2.5±0.4	1 m/pack
Ø29	≥29.0	1.1±0.3	1.5±0.3	17.1±1.5	2.0±0.3	2.5±0.4	1 m/pack
Ø30	≥30.0	1.1±0.3	1.5±0.3	17.7±1.5	2.0±0.3	2.5±0.4	1 m/pack
Ø35	≥35	1.1±0.3	1.5±0.3	20.6±1.5	2.0±0.3	2.5±0.4	1 m/pack
Ø40	≥40	1.1±0.3	1.5±0.3	23.6±1.5	2.0±0.3	2.5±0.4	1 m/pack
Ø50	≥47	1.1±0.3	1.5±0.3	29.5±3	2.0±0.3	2.5±0.4	1 m/pack
Ø60	≥57	1.5±0.4		35.3±3	2.5±0.4		1 m/pack
Ø70	≥67	1.5±0.4		41.2±3	2.5±0.4		1 m/pack
Ø80	≥77	1.5±0.4		47±5	2.5±0.4		1 m/pack
Ø90	≥87	1.5±0.4		53±5	2.5±0.4		1 m/pack
Ø100	≥97	1.5±0.4		59±5	2.5±0.4		1 m/pack
Ø110	≥107	1.5±0.4		64.7±5	2.5±0.4		1 m/pack
Ø120	≥117	1.5±0.4		70.5±5	2.5±0.4		1 m/pack

Note:
1. Color options include black, gray, white, red, or other customer-specific colors.
2. Custom sizes and other requirements are available upon request.
