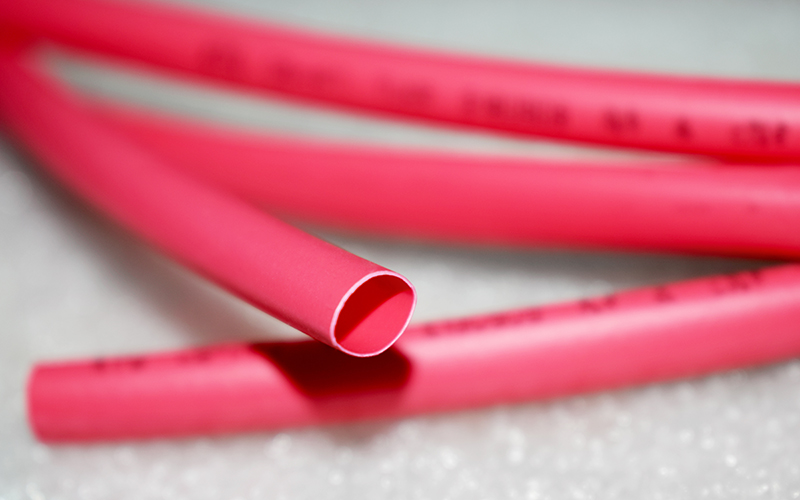

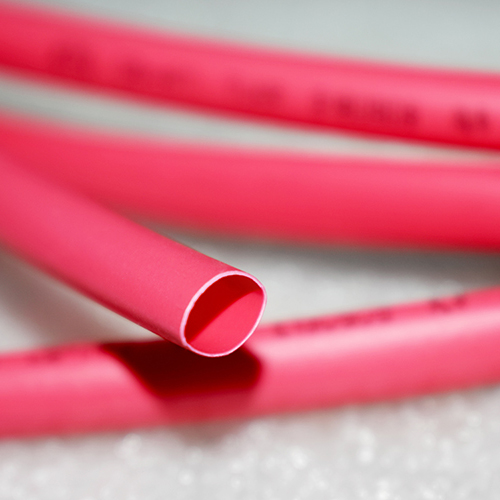

Heat Shrink Tubing for Evaporator & Condenser Tube Protection

CB-HFT (HE)

Heat Shrink Tubing for Evaporator & Condenser Tube Protection

Single Wall Heat Shrink Tubing for Electronic Applications
  • Modified polyolefin
  • Shrink Ratio: 2:1
  • Flexible with high elasticity, providing a smooth internal surface for easy installation
  • Halogen-free, flame-retardant, and low smoke, complying with environmental standards such as RoHS, REACH, and SONY
Request a Quote
Applications
  • Our tubing is widely used for the external protection of refrigeration equipment's evaporator and condenser tubes.
Features
  • Flexible with high elasticity, providing a smooth internal surface for easy installation
  • Halogen-free, flame-retardant, and low smoke, complying with environmental standards such as RoHS, REACH, and SONY
  • Superior mechanical strength, ensuring resistance to damage during installation
  • High temperature resistance and insulation performance
  • Standard color: red (other colors available upon request)
Technical Data
Properties Test Method Performance Typical Value
Shrink temperature UL224 125℃ 125℃
Longitudinal change UL224 -5％~5％ 3％
Tensile strength ASTMD2671 ≥10.4MPa 16.1MPa
Ultimate elongation ASTMD2671 ≥200％ 449％
Aging in hot air oven (158℃±2℃/168h) - - -
Tensile strength after aging ASTMD2671 ≥7.3MPa 12.5MPa
Ultimate elongation after aging ASTMD2671 ≥100% 320%
Dielectric strength (2500V/60s) UL224 No breakdown No breakdown
Flammability ASTMD2671 Self-extinguishing within 60s Self-extinguishing within 35s
Concentricity ASTMD2671 ≥70% 90%
Dimensions
Size As Supplied (mm) After Recovery (mm)
Inside Diameter Wall Thickness Inside Diameter Wall Thickness
Ø2.0 2.50±0.15 0.20±0.05 ≤1.00 0.42±0.06
Ø2.5 3.00±0.15 0.22±0.05 ≤1.25 0.46±0.08
Ø3.0 3.50±0.15 0.25±0.06 ≤1.50 0.48±0.08
Ø3.0 3.50±0.15 0.15±0.03 ≤1.50 0.30±0.05
Ø3.0 3.20±0.10 0.15±0.03 ≤1.50 0.30±0.06
Ø3.5 4.00±0.20 0.25±0.06 ≤1.75 0.48±0.08
Ø5.0 5.60±0.20 0.26±0.10 ≤2.50 0.50±0.10
Ø5.5 5.95±0.25 0.23±0.06 ≤2.50 0.50±0.08
Ø6.0 6.50±0.20 0.25±0.06 ≤3.00 0.50±0.10
Ø6.0 6.50±0.30 0.17±0.05 ≤3.00 0.33±0.10
Ø6.5 7.00±0.20 0.30±0.07 ≤3.25 0.58±0.08
Ø9.0 9.70±0.30 0.36±0.09 ≤4.50 0.72±0.10
Ø9.0 9.50±0.40 0.18±0.06 ≤4.50 0.36±0.05
Ø10.0 10.70±0.30 0.36±0.08 ≤5.00 0.66±0.10
Ø11.0 11.70±0.40 0.23±0.08 ≤5.50 0.46±0.10
Ø11.0 11.50±0.80 1.80±0.30 ≤8.00 1.00±0.15
