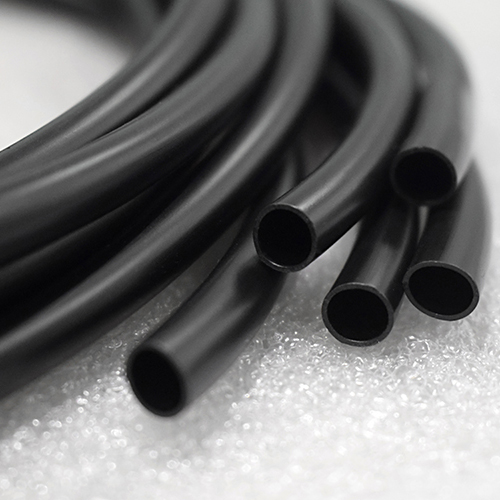

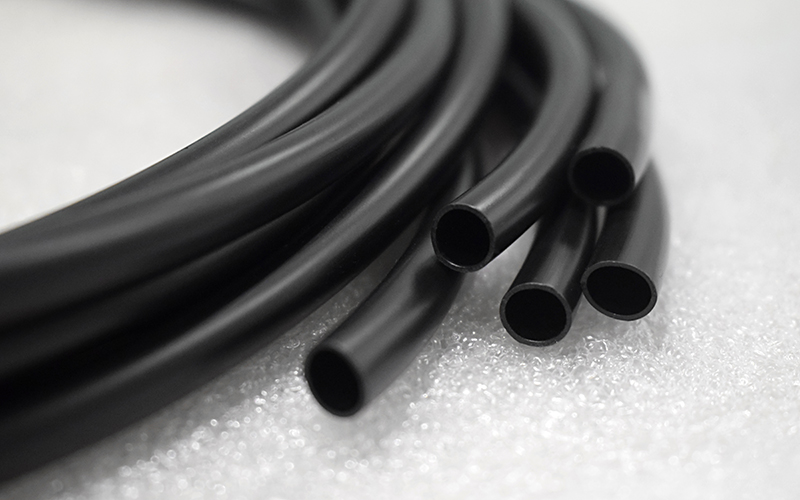

PVC Insulation Tubing

CYG-PVC (120)

PVC Insulation Tubing

Non-Shrink Tubing for Automotive Wiring Harness Protection
  • Polyvinyl chloride
  • Temperature rating: -40°C to 120°C
  • Ideal electronic and physical properties, and corrosion resistance
  • Superior assembly performance
  • Superior cold resistance and flame retardancy
Request a Quote
Applications
  • Our PVC insulation tubing finds extensive application in automotive wiring harnesses and insulation protection for specific components, providing reliable and efficient performance.
Features
  • Temperature rating: -40°C to 120°C
  • Ideal electronic and physical properties, and corrosion resistance
  • Superior assembly performance
  • Superior cold resistance and flame retardancy
  • Complies with Volkswagen TL 507-1 standard
  • Approved by Volkswagen BMG
Technical Data
Properties Test Method Performance
Hardness DIN ISO 7619-1 95± (1 Shore A)
Tensile strength DIN EN ISO 527-1 (23±3)MPa
Ultimate elongation DIN EN ISO 527-1 300%~400%
Short-term aging (120℃/120h) - -
Hardness after aging Tensile strength after aging Ultimate elongation after aging DIN ISO 7619-1 DIN EN ISO 527-1 DIN EN ISO 527-1 Change ≤ (2 Shore A)
(23±3)MPa
300%~400%
Long-term aging (120℃/3000h) - -
Tensile strength after aging Ultimate elongation after aging DIN EN ISO 527-1 DIN EN ISO 527-1 Rate of change ≤50%
Rate of change ≤50%
Heat shock 120℃, 120h No dripping, no flowing, no cracking
Cold bend -15℃, 22H, bending 180° No cracking
Flammability TL1010 ＜100mm/min
Dimensions
Size Inside Diameter (mm) Wall Thickness (mm)
Ø3.0 3.0+0.4 0.4±0.10
Ø4.0 4.0+0.4 0.5±0.15
Ø5.0 5.0+0.4 0.6±0.15
Ø6.0 6.0+0.4 0.6±0.15
Ø7.0 7.0+0.4 0.7±0.15
Ø8.0 8.0+0.4 0.7±0.15
Ø9.0 9.0+0.4 0.7±0.15
Ø10.0 10.0+0.5 0.7±0.15
Ø11.0 11.0+0.5 0.8±0.15
Ø12.0 12.0+0.5 0.8±0.15
Ø13.0 13.0+0.5 0.8±0.15
Ø14.0 14.0+0.5 1.0±0.20
Ø15.0 15.0+0.5 1.0±0.20
Ø16.0 16.0+0.7 1.0±0.20
Ø17.0 17.0+0.7 1.0±0.20
Ø18.0 18.0+0.7 1.2±0.20
Ø19.0 19.0+0.7 1.2±0.20
Ø20.0 20.0+0.7 1.2±0.20
Ø21.0 21.0+0.8 1.2±0.20
Ø22.0 22.0+0.8 1.2±0.20
Ø23.0 23.0+0.8 1.2±0.20
Ø24.0 24.0+0.8 1.2±0.20
Ø25.0 25.0+0.8 1.2±0.20
Ø28.0 28.0+1.0 1.2±0.20
Ø30.0 30.0+1.0 1.2±0.20
Ø32.0 32.0+1.0 1.2±0.20
