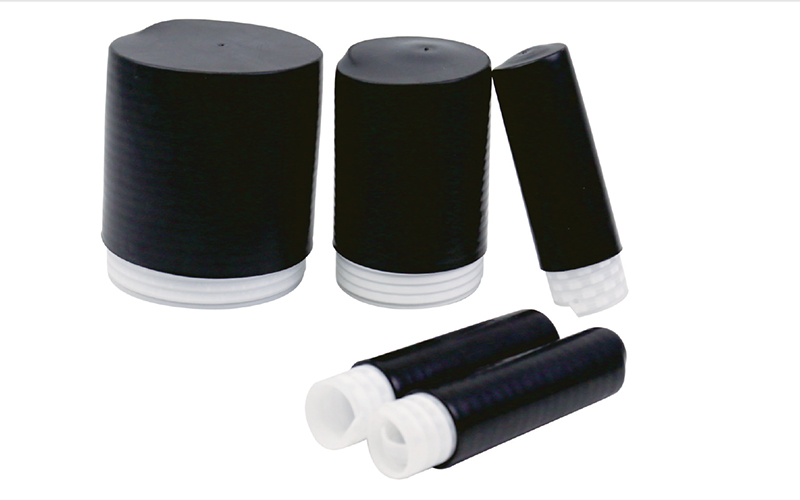

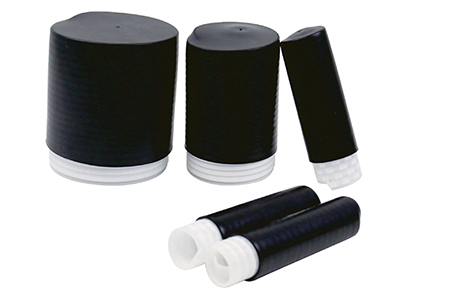

Our cold shrink end cap, made from EPDM rubber, offers simple and fast installation. It is designed to protect cable ends from moisture, contamination, and corrosion during cable installation or storage. With its cold shrink technology, no additional heating is required for installation.
| Model | Inside Diameter Before Shrink (mm) | Thickness After Shrink (mm) | Application Range (mm) | Length (mm) |
| WCSEC-1 | Ø20 | 2.5 | Ø13-Ø16 | 70 |
| WCSEC-2 | Ø28 | 2.5 | Ø18-Ø24 | 70 |
| WCSEC-3 | Ø47 | 2.6 | Ø25-Ø38 | 70 |
| WCSEC-4 | Ø80 | 2.6 | Ø48-Ø70 | 70 |
