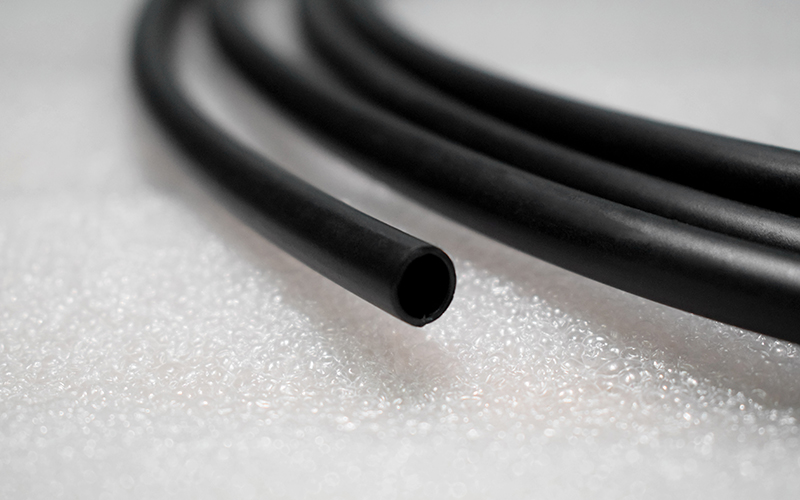

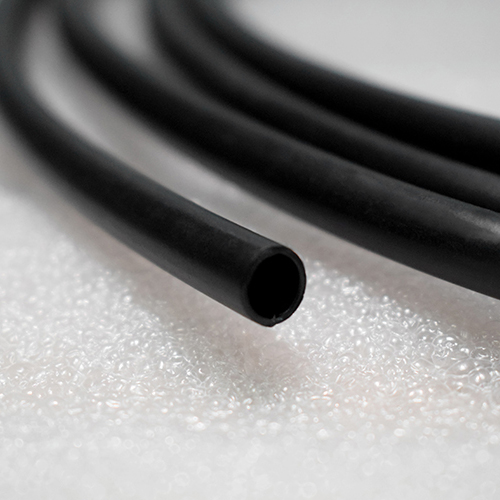

Abrasion-Resistant Heat Shrink Tubing

CB-2000

Abrasion-Resistant Heat Shrink Tubing

Single Wall Heat Shrink Tubing for Automotive
  • Cross-linked modified polyolefin
  • Operating temperature range: -55°C to 125°C
  • Shrink temperature: 100°C to 140°C
  • Resistance to abrasion, oil, and chemicals
  • Halogen-free and low smoke, complying with environmental standards
Request a Quote
Applications
  • Our heat shrink tubing is ideal for a wide range of automotive applications, including oil circuit and wiring protection.
  • It is particularly suitable for use in harsh environments and areas requiring special protection.
Features
  • Operating temperature range: -55°C to 125°C
  • Shrink temperature: 100°C to 140°C
  • Resistance to abrasion, oil, and chemicals
  • Halogen-free and low smoke, complying with environmental standards
  • Flexible for easy installation
  • Superior insulation, temperature resistance, and voltage withstand
  • Voltage withstand: 600V
Technical Data
Properties Test Method Performance Baseline
Longitudinal change ASTMD2671 -10%~0 -4%
Tensile strength ASTMD638 ≥10.4MPa 14.1MPa
Ultimate elongation ASTMD638 ≥200% 329%
Dielectric strength ASTMD2671 ≥19.7kV/mm 26kV/mm
Heat aging test (158℃/168h) — — —
Tensile strength after aging ASTMD638 ≥7.3MPa 9.5MPa
Dielectric strength after aging ASTMD2671 ≥15.8kV/mm 24kV/mm
Volume resistivity ASTMD876 ≥1.0×1012 Ω·cm 3.6×1014 Ω·cm
Oil resistance SAE-AMS-DTL, 23053/5 No corrosion Pass
Copper corrosion ASTMD2671 No corrosion Pass
Heat shock ASTMD2671 No dripping, no flowing, no cracking Pass
Dimensions
Size As Supplied (mm) After Recovery (mm)
Minimum Inside Diameter Maximum Inside Diameter Minimum Wall Thickness
Ø6.0 6.0 4.0 1.0
Ø7.0 7.0 4.0 1.0
Ø8.0 8.0 6.0 1.0
Ø10 10.0 7.5 1.0
Ø12 12.0 6.0 1.2
Ø16 16.0 8.0 1.2
Ø25 25.0 12.5 1.2
