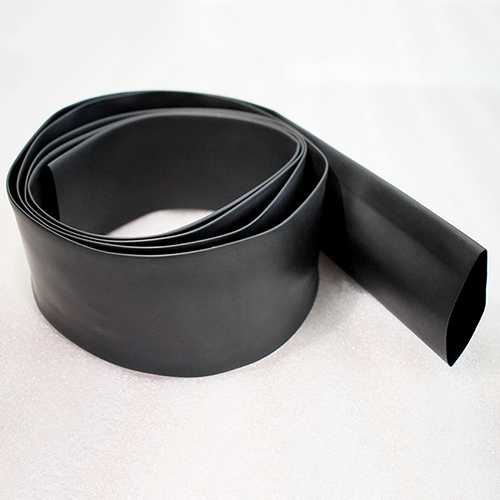

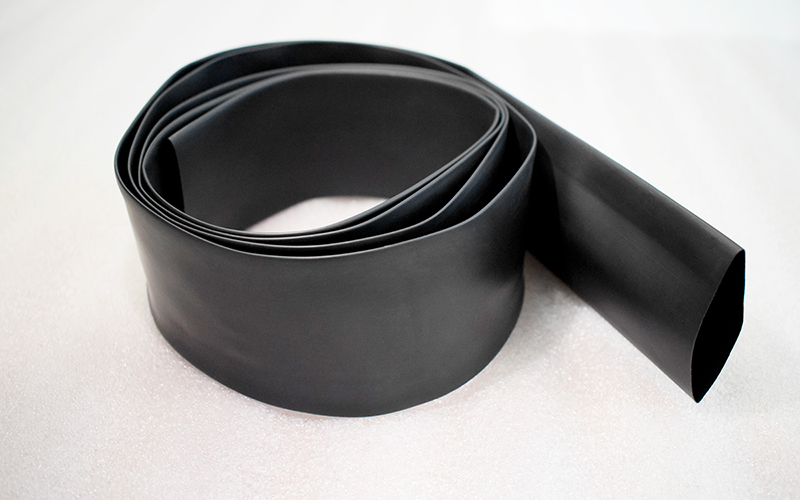

Flexible Heat Shrink Tubing

CYG-HT

Flexible Heat Shrink Tubing

Single Wall Heat Shrink Tubing for Automotive
Material
  • Cross-linked modified polyolefin
Applications
  • Our flexible heat shrink tubing is extensively used in the automotive industry to provide external protection for a wide range of rubber hoses and nylon tubes.
  • Its flexibility and high resistance properties make it an ideal choice for automotive applications where reliability is paramount.
Request a Quote Technical Data
Properties Test Method Performance
Continuous operating temperature range — -40°C to 125°C
Tensile strength ASTMD2671 ≥10.4MPa
Ultimate elongation ASTMD2671 ≥200%
Heat aging test (158°C/168h) — —
Tensile strength after aging ASTMD2671 ≥7.3MPa
Ultimate elongation after aging ASTMD2671 ≥100%
Impact resistance (225°C/4h) ASTMD2671 No flowing, no cracking
Dielectric strength ASTMD2671 ≥19.7kV/mm
Volume resistivity ASTMD2671 ≥1.0×1012 Ω·cm
Flammability FMVSS 302 Type B
Dimensions

Shrink Ratio: 2:1~3:1

Size As Supplied (mm) After Recovery (mm)
Minimum Inside Diameter Maximum Inside Diameter Minimum Wall Thickness
Ø20 21.0 10.0 1.56
Ø26 26.0 9.0 0.85
Ø30 30.0 15.0 1.10
Ø39 39.0 13.0 1.65
Ø51 51.0 18.0 1.45
