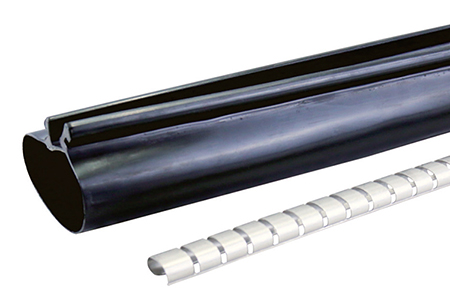

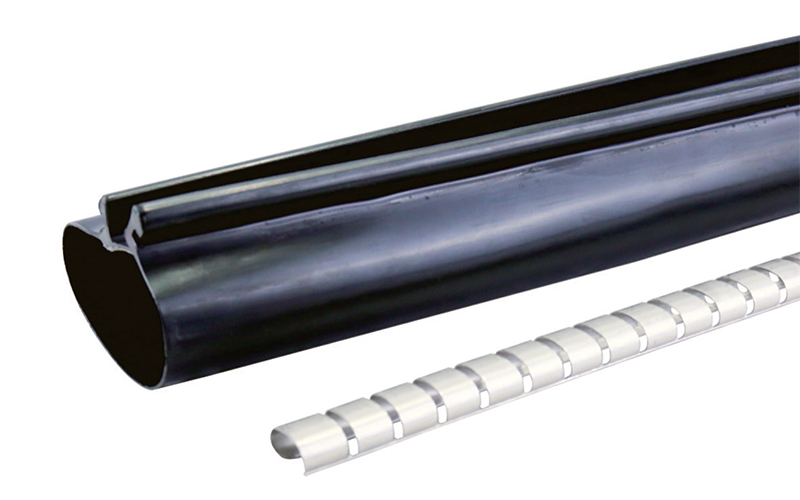

Heat Shrink Cable Repair Sleeve

Our heat shrink cable repair sleeve is designed for the insulation, sealing, and protection of low voltage cable connections such as mining cables and offshore wind turbine cables, as well as electronic contacts that require regular inspections.

Request a Quote

Dimensions

	Width (mm)		Wall Thickness (mm)		Length
	As Supplied (≥)	After Recovery (≤)	As Supplied	After Recovery	Length
Ø30	120	37	1.0±0.3	3.8±0.4	900
Ø40	130	37	1.0±0.3	3.8±0.4	900
Ø50	160	52	1.0±0.3	3.8±0.4	900
Ø65	205	74	1.0±0.3	3.8±0.4	900
Ø70	220	74	1.0±0.3	3.8±0.4	900
Ø85	270	85	1.1±0.3	3.8±0.4	900
Ø100	320	85	1.1±0.3	3.8±0.4	900
Ø120	380	125	1.1±0.3	3.8±0.4	900
Ø150	475	155	1.1±0.3	3.8±0.4	900
Ø160	505	155	1.1±0.3	3.8±0.4	900
Ø195	590	155	1.0±0.3	3.8±0.4	900

Technical Data

Properties	Test Method	Performance
Tensile strength	GB040	≥12MPa
Ultimate elongation	GB1040	≥300%
Tensile strength after aging	GB7141/130℃, 168hrs	±20%
Ultimate elongation after aging	GB7141/130℃, 168hrs	±20%
Dielectric strength	GB1408	≥15Kv/mm
Volume resistivity	GB1410	1x10 11 Ω·cm
