Halogen-Free Heat Shrink Marker

CYG-MT

Halogen-Free Heat Shrink Marker

Heat Shrinkable Identification Sleeve for Wire & Cable Management
  • Material: Cross-linked modified polyolefin
  • Shrink ratio: 2:1 / 3:1
  • Compliant with UL224 and halogen-free standards
  • Meets SAE-AMS-DTL-23053/5 and MIL-STD-202G requirements for label performance
  • Diverse packaging options to meet various customer needs
Request a Quote
Applications
  • Our halogen-free heat shrink marker sleeve is the ideal solution to meet the high-performance identification needs of manufacturers for cables, fixtures, and equipment management. This sleeve is made from cross-linked modified polyolefin material, which ensures high abrasion resistance and flame retardancy.
  • It is widely used for circuit identification in electronic equipment across commercial, industrial, military, automotive, and aerospace sectors.
Features
  • Compliant with UL224 and halogen-free standards
  • Meets SAE-AMS-DTL-23053/5 and MIL-STD-202G requirements for label performance
  • Diverse packaging options to meet various customer needs
  • Compatible with standard dot matrix printers and thermal transfer printers
  • Dual-sided printing for enhanced legibility
  • Standard colors available: white and yellow, with custom color options
  • Resistant to dirt, providing long-lasting identification
Technical Data
Properties Test Method Typical Value
Tensile strength SAE-AMS-DTL-23053 ≥10.3MPA
Ultimate elongation SAE-AMS-DTL-23053 ≥200%
Low temperature flexibility (-25±1℃/4h) SAE-AMS-DTL-23053-4.6.7 -55℃, 4 hours, no cracking
Heat shock (-250±3℃/4h) SAE-AMS-DTL-23053-4.6.8 No dripping, no flowing, no cracking
Heat aging (175±2℃/168h) SAE-AMS-DTL-23053-4.6.9 No cracking
Tensile strength after aging (23±2℃) SAE-AMS-DTL-23053-4.6.13＆ASTMD638 ≥6.9Mpa
Ultimate elongation after aging (23±2℃) AE-AMS-DTL-23053-4.6.13＆ASTMD638 ≥100%
Color stability (23±2℃) SAE-AMS-DTL-23053-4.6.15 Pass
Dielectric strength (23±2℃) SAE-AMS-DTL-23053-4.6.13＆ASTMD2671 ≥19.7kV/mm
Volume resistivity (23±2℃) SAE-AMS-DTL-23053-4.6.13＆ASTMD876, 500VDC,1MIN ≥1014 Ω·cm
Flammability SAE-AMS-DTL-23053-4.6.14＆ASTMD2671＆UL224 VW-1
Fluid resistance AE-AMS-DTL-23053-4.6.11 No visible damage
Printing durability SAE AS81531 4.6.2 After unidirectional rubbing for 50 times, the print is clearly visible
Printing solvent resistance MIL-STD-202G METHOD 215K Isopropyl alcohol (mineral spirits)10 rubs (x3) Terpene defluxer 10 rubs (x3)
Propylene glycol methyl ether (ethanolamine) 10 rubs (x3)
Dimensions

Continuous Format Heat Shrink Marker (shrink ratio: 3:1), CYG-MT (3X)

Size As Supplied (mm) After Recovery (mm) Packaging (m/reel)
Inside Diameter Wall Thickness Lay Flat Width Total Thickness Inside Diameter
Ø2.4 ≥2.4 0.20±0.05 4.9±0.5 0.40±0.10 ≤0.79 30
Ø3.2 ≥3.2 0.20±0.05 6.1±0.5 0.40±0.10 ≤1.07 30
Ø4.8 ≥4.8 0.20±0.05 8.4±0.5 0.40±0.10 ≤1.57 30
Ø6.4 ≥6.4 0.20±0.05 11.2±0.8 0.40±0.10 ≤2.11 30
Ø9.5 ≥9.5 0.20±0.05 16.8±0.8 0.40±0.10 ≤3.18 30
Ø12.7 ≥12.7 0.20±0.05 21.8±1.0 0.40±0.10 ≤4.22 30
Ø19.1 ≥19.1 0.30±0.06 33.4±1.0 0.60±0.15 ≤6.35 30
Ø25.4 ≥25.4 0.30±0.06 42.4±1.5 0.60±0.15 ≤8.46 30
Ø38.1 ≥38.1 0.30±0.06 63.7±1.5 0.60±0.15 ≤12.7 30
Ø50.8 ≥50.8 0.30±0.06 82.2±1.5 0.60±0.15 ≤16.9 30

Continuous Format Heat Shrink Marker (shrink ratio: 2:1), CYG-MT (2X)

Size As Supplied (mm) After Recovery (mm) Packaging (m/reel)
Inside Diameter Wall Thickness Lay Flat Width Total Thickness Inside Diameter
Ø2.4 ≥2.4 0.15±0.05 5.1±0.4 0.30±0.10 ≤1.17 30
Ø3.2 ≥3.2 0.15±0.05 6.7±0.4 0.30±0.10 ≤1.58 30
Ø4.8 ≥4.8 0.15±0.05 9.1±0.5 0.30±0.10 ≤2.36 30
Ø6.4 ≥6.4 0.15±0.05 11.5±0.5 0.30±0.10 ≤3.18 30
Ø9.5 ≥9.5 0.20±0.05 16.5±0.5 0.40±0.10 ≤4.75 30
Ø12.7 ≥12.7 0.20±0.05 21.7±0.5 0.40±0.10 ≤6.35 30
Ø19.1 ≥19.1 0.20±0.05 2.2±0.8 0.40±0.10 ≤9.53 30
Ø25.4 ≥25.4 0.20±0.05 42.0±0.8 0.40±0.10 ≤12.7 30
Ø38.1 ≥38.1 0.20±0.05 62.3±0.8 0.40±0.10 ≤19.05 30
Ø50.8 ≥50.8 0.25±0.05 82.0±0.8 0.50±0.10 ≤25.4 30

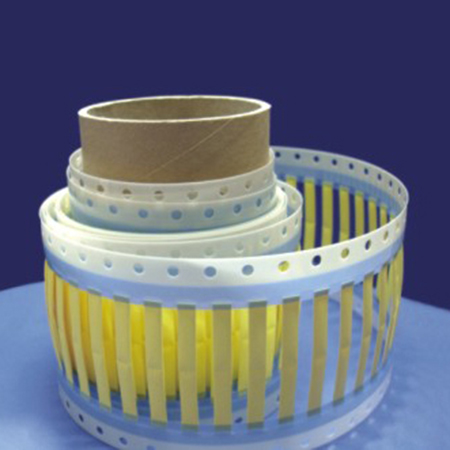

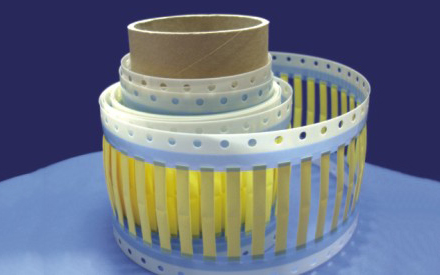

Ladder Format Heat Shrink Marker (shrink ratio: 3:1), CYG-MT (3X)

Size As Supplied (mm) After Recovery (mm) Packaging (m/reel)
Inside Diameter Wall Thickness Lay Flat Width Total Thickness Inside Diameter
Ø2.4 ≥2.4 0.20±0.05 4.9±0.5 0.40±0.10 ≤0.79 2000
Ø3.2 ≥3.2 0.20±0.05 6.1±0.5 0.40±0.10 ≤1.07 2000
Ø4.8 ≥4.8 0.20±0.05 8.4±0.5 0.40±0.10 ≤1.57 2000
Ø6.4 ≥6.4 0.20±0.05 11.2±0.8 0.40±0.10 ≤2.11 1500
Ø9.5 ≥9.5 0.20±0.05 16.8±0.8 0.40±0.10 ≤3.18 1500
Ø12.7 ≥12.7 0.20±0.05 21.8±1.0 0.40±0.10 ≤4.22 500
Ø19.1 ≥19.1 0.30±0.06 33.4±1.0 0.60±0.15 ≤6.35 500
Ø25.4 ≥25.4 0.30±0.06 42.4±1.5 0.60±0.15 ≤8.46 500
Ø38.1 ≥38.1 0.30±0.06 63.7±1.5 0.60±0.15 ≤12.7 500
Ø50.8 ≥50.8 0.30±0.06 82.2±1.5 0.60±0.15 ≤16.9 250

Ladder Format Heat Shrink Marker (shrink ratio: 2:1), CYG-MT (2X)

Size After Recovery (mm) Packaging (m/reel)
Inside Diameter Wall Thickness Lay Flat Width Total Thickness Inside Diameter
Ø2.4 ≥2.4 0.15±0.05 5.1±0.4 0.30±0.10 ≤1.17 2000
Ø3.2 ≥3.2 0.15±0.05 6.7±0.4 0.30±0.10 ≤1.58 2000
Ø4.8 ≥4.8 0.15±0.05 9.1±0.5 0.30±0.10 ≤2.36 2000
Ø6.4 ≥6.4 0.15±0.05 11.5±0.5 0.30±0.10 ≤3.18 1500
Ø9.5 ≥9.5 0.20±0.05 16.5±0.5 0.40±0.10 ≤4.75 1500
Ø12.7 ≥12.7 0.20±0.05 21.7±0.5 0.40±0.10 ≤6.35 500
Ø19.1 ≥19.1 0.20±0.05 2.2±0.8 0.40±0.10 ≤9.53 500
Ø25.4 ≥25.4 0.20±0.05 42.0±0.8 0.40±0.10 ≤12.7 500
Ø38.1 ≥38.1 0.20±0.05 62.3±0.8 0.40±0.10 ≤19.05 500
Ø50.8 ≥50.8 0.25±0.05 82.0±0.8 0.50±0.10 ≤25.4 250
